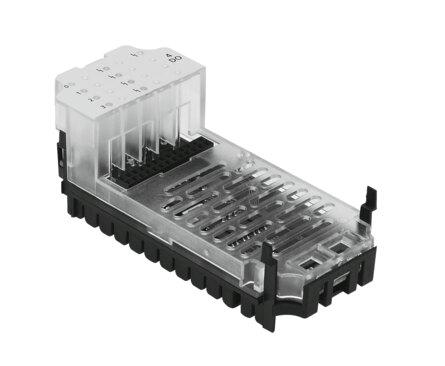

Reference imageConfirm configuration by manufacturer part number.
Festo
195754
Output module CPX-4DA
The Festo part number 195754 is an industrial component featuring 4 PNP outputs with a nominal DC operating voltage of 24 V and a DC operating voltage range of 18 V to 30 V. Measuring 50 mm x 107 mm x 50 mm and weighing 42 g, the unit incorporates PA-reinforced and PC housing materials with a corrosion resistance class of CRC 1 and VDMA24364-B2-L LABS conformity. Operational within an ambient temperature range of -5 °C to 50 °C, it includes LED indicators for group diagnostics, channel diagnostics, and channel status, along with parameterization options for failsafe, forcing, and idle mode per channel. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 195754
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 195754.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
- Product weight
- 42 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- Depending on terminal block
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced | PC
- LED indicators
- 1 group diagnostics | 4 channel diagnostics | 4 channel status
- Diagnostics
- Short circuit/overload per channel | Undervoltage of outputs
- No. of outputs
- 4
- Parameterization
- Failsafe per channel | Forcing per channel | Idle mode per channel | Response to short circuit | Module monitoring
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Intrinsic current consumption at nominal operating voltage
- Type. 16 mA
- Characteristic curve outputs
- Based on IEC1131-T2
- Switching logic at outputs
- PNP (positive switching)
- Max. residual current of outputs per module
- 4 A
- Max. power supply per channel
- 1 A (24 W lamp load)
- Electrical isolation between channels
- No
- Electrical isolation between channel and internal bus
- Yes, when using intermediate feed
- Fuse protection (short circuit)
- Internal electronic fuse per channel
