Festo
195981

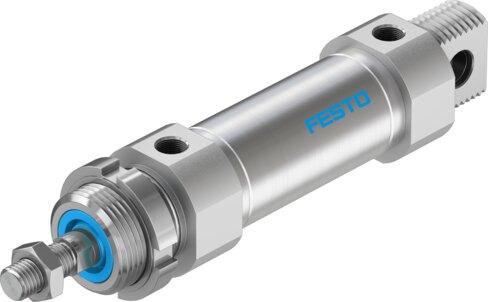

Round cylinder DSNU-32-40-P-A
The Festo 195981 is a double-acting industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and an M10x1.25 piston rod thread. This unit operates within a pressure range of 1 bar to 10 bar utilizing compressed air as per ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 482.5 N advancing and 415 N retracting at 6 bar. Constructed with elastic cushioning rings at both ends and rated for a moving mass of 157 g within an ambient temperature range of -20 °C to 80 °C, the assembly achieves ISO 14644-1 Class 6 cleanroom suitability and CRC 2 moderate corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 195981
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 195981.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 40 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.4 J
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 482.5 N
- Moving mass
- 157 g
- Product weight
- 433 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 195981. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
