Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

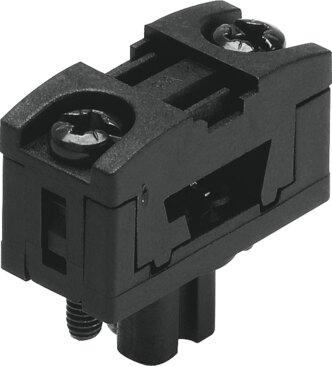

Reference imageConfirm configuration by manufacturer part number.
Festo
196089
Cable socket ASI-SD-FK180
The Festo part number 196089 is an industrial component featuring a 2-pin straight socket electrical connection and a through-hole mounting design that supports any mounting position. Constructed with a polyamide housing and bronze pin contacts, this RoHS-compliant part operates within a DC voltage range of 75 V, an AC voltage range of 60 V, and a current rating of 3 A with a connection cross section of 1.5 mm². It weighs 6.2 g, achieves an IP65 degree of protection, and conforms to VDMA24364-B2-L LABS (PWIS) standards, functioning at ambient temperatures from -5 °C to 50 °C with flexible cable installation and storage temperatures from -30 °C to 85 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196089
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196089.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- With through-hole
- Mounting position
- Any
- Product weight
- 6.2 g
- Electrical connection
- 2-pin | Straight socket
- DC operating voltage range
- 75 V
- Operating voltage range AC
- 60 V
- Current rating
- 3 A
- Connection cross section
- 1.5 mm²
- Degree of protection
- IP65
- Ambient temperature with exible cable installation
- -5 °C...50 °C
- Storage temperature
- -30 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA
- Material of pin contacts
- Bronze
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196089. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
