196118

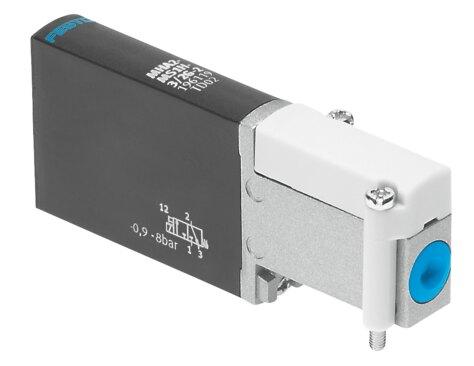

Name: Festo 196118 Air solenoid valve MHA2-M1H-3/2G-2
Brand: Festo

Air solenoid valve MHA2-M1H-3/2G-2

The Festo 196118 is a 10 mm wide industrial component featuring a 3/2-way, closed, monostable valve function with direct electrical actuation and a pressure relief poppet valve structural design. It delivers a normal nominal flow rate of 100 l/min at an operating pressure range of -0.09 MPa to 0.8 MPa utilizing a 24V DC operating voltage and IP65 protection. Additional specifications include a nominal width of 2 mm, mechanical spring reset, soft sealing principle, non-detenting manual override, adjustable exhaust air function, and c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 196118
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 196118.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, closed, monostable
Actuation type: Electrical
Width: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 100 l/min
Pneumatic working port: Sub-base
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
Structural design: Pressure relief poppet valve
Reset method: Mechanical spring
Degree of protection: IP65
Certication: c UL us - recognized (OL)
Nominal width: 2 mm
Width dimension: 14 mm
Note on grid dimension: Minimum distance between the valves is 4 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: directly
Flow direction: Reversible with restrictions
Lap: Negative overlap
Operating pressure, reversible: -0.09 MPa...0.1 MPa | -0.9 bar...1 bar | -13.05 psi...14.5 psi
Max. switching frequency: 130 Hz
Switching time oﬀ: 3.5 ms
On switching time: 7 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: 2.88 W
Permissible voltage uctuations: +/- 10%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 196118. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
