Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

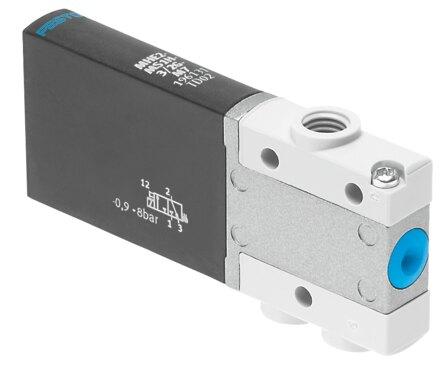

Reference imageConfirm configuration by manufacturer part number.
Festo
196151
Air solenoid valve MHE2-MS1H-3/2O-M7
The Festo 196151 is a 10 mm wide electrical 3/2-way monostable open pressure relief poppet valve featuring a nominal width of 2 mm, a normal nominal flow rate of 100 l/min, and an M7 pneumatic working port. Designed with a soft sealing principle, adjustable exhaust air function, and non-detenting manual override, this component operates on 24V DC within a pressure range of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar, -13.05 psi to 116 psi). It incorporates a mechanical spring reset method, an IP65 degree of protection, and any mounting position with a minimum valve grid dimension distance of 4 mm. Certifications include RCM compliance and c UL us recognition, along with CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196151
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196151.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 100 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar | -13.05 psi...116 psi
- Structural design
- Pressure relief poppet valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Nominal width
- 2 mm
- Width dimension
- 14 mm
- Note on grid dimension
- Minimum distance between the valves is 4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Reversible with restrictions
- Lap
- Negative overlap
- Reverse polarity protection
- Bipolar
- Additional functions
- Spark arresting | Holding current reduction | Protective circuit
- Operating pressure, reversible
- -0.09 MPa...0.1 MPa | -0.9 bar...1 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196151. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
