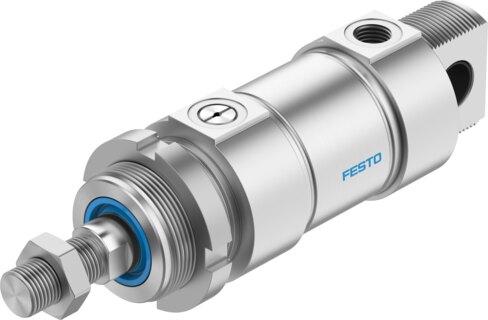

Reference imageConfirm configuration by manufacturer part number.
Festo
196382
Round cylinder ESNU-50-10-P-A
The Festo part number 196382 is a single-acting industrial component featuring a 50 mm piston diameter, a 10 mm stroke, and an M16x1.5 piston rod thread. Operating within a pressure range of 0.12 MPa to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4], this unit provides elastic cushioning at both ends, position sensing via proximity switch, and an ambient temperature range of -20 °C to 80 °C. It delivers a theoretical advancing force of 1072.8 N and a retracting force of 95 N at 6 bar, supported by a spring resetting force of 95 N in the retracted position and a moderate corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196382
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196382.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.12 MPa...1 MPa | 1.2 bar...10 bar
- Mode of operation
- Pushing | Single-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 J
- Spring resetting force with piston rod in retracted position
- 95 N
- Theoretical force at 6 bar, retracting
- 95 N
- Theoretical force at 6 bar, advancing
- 1072.8 N
- Moving mass
- 438 g
- Moving mass at 0 mm stroke
- 413 g
- Additional moving mass per 10 mm stroke
- 25 g
- Product weight
- 1127 g
- Basic weight with 0 mm stroke
- 1087 g
- Additional weight per 10 mm stroke
- 40 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196382. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
