Festo
196651

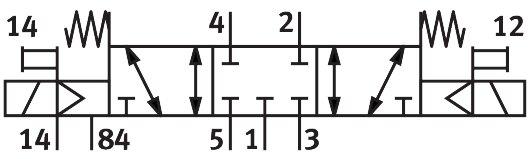

Air solenoid valve CDVI5.0-MT2H-5/3GS
The Festo 196651 is an electrically actuated 5/3 closed piston gate valve featuring a soft sealing principle and a nominal width of 5 mm. This pilot-controlled component operates on 24V DC with an operating pressure range of -0.9 bar to 10 bar, an external pilot air supply port requiring 3 bar to 8 bar, and a normal nominal flow rate of 650 l/min. Additional technical characteristics include a mechanical spring reset method, non-detenting manual override, reversible flow direction, C value of 2.55 l/sbar, b-value of 0.5, off switching time of 25 ms, sub-base pneumatic working ports, and an exhaust air function with a flow control option. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196651
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196651.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3, closed
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 650 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 5 mm
- Exhaust air function
- With ow control option
- Sealing principle
- Soft
- Manual override
- Non-detenting
- Type of control
- Pilot-controlled
- Pilot air supply port
- External
- Flow direction
- Reversible
- Note on forced dynamization
- Switching frequency at least once a month
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.5
- C value
- 2.55 l/sbar
- Switching time off
- 25 ms
- On switching time
- 12 ms
- Changeover time
- 17 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 210 g
- Type of mounting
- Screw-in
- Pilot exhaust air port 82/84
- Sub-base
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196651. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
