Festo
196661

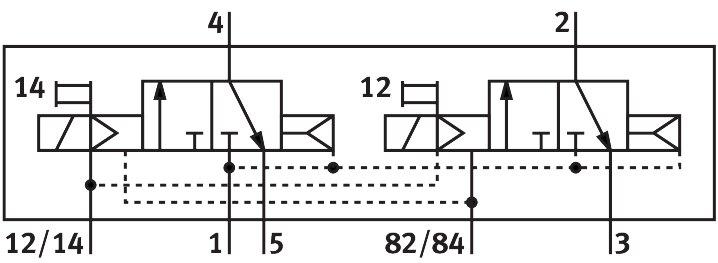

Air solenoid valve CDVI5.0-MT2H-2X3GLS
The Festo part number 196661 is an electrical piston gate valve featuring a 2x3/2 closed, monostable valve function and a soft sealing principle. This pilot-controlled component operates on 24V DC with an operating pressure ranging from 3 bar to 10 bar, an external pilot air supply port, and a normal nominal flow rate of 300 l/min normalized to DIN 1343. Designed with a nominal width of 5 mm, a pneumatic spring reset method, and a non-detenting manual override, it achieves an on switching time of 10 ms and a switching time off of 22 ms. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196661
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196661.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, closed, monostable
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 300 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Nominal width
- 5 mm
- Sealing principle
- Soft
- Manual override
- Non-detenting
- Type of control
- Pilot-controlled
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Note on forced dynamization
- Switching frequency at least once a month
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.14
- C value
- 1.4 l/sbar
- Switching time off
- 22 ms
- On switching time
- 10 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 210 g
- Type of mounting
- Screw-in
- Pilot exhaust air port 82/84
- Sub-base
- Pneumatic connection 1
- Sub-base
- Pneumatic connection 2
- Sub-base
