196663

Name: Festo 196663 Air solenoid valve CDVI5.0-MT2H-2X3OLS
Brand: Festo

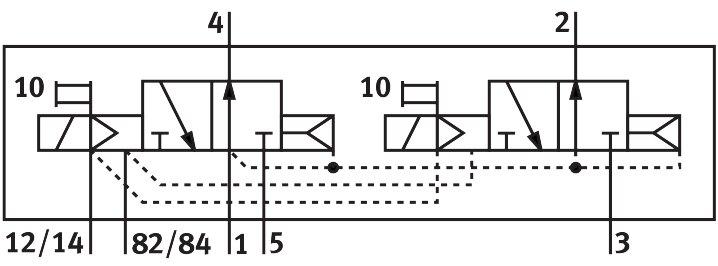

Air solenoid valve CDVI5.0-MT2H-2X3OLS

The Festo 196663 is an electrical, pilot-controlled piston gate valve featuring a 2x3/2 open, monostable valve function and a nominal width of 5 mm. It operates at 24V DC with an operating pressure range of 3 bar to 10 bar, utilizing an external pilot air supply port and a soft sealing principle with a non-detenting manual override. This non-reversible component delivers a normal nominal flow rate of 300 l/min, a C value of 1.4 l/sbar, a b-value of 0.14, and pneumatic spring reset, with switching times of 10 ms on and 22 ms off. Please submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 196663
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 196663.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2, open, monostable
Actuation type: Electrical
Normal nominal ow rate (normalized to DIN 1343): 300 l/min
Pneumatic working port: Sub-base
Operating voltage: 24V DC
Operating pressure: 3 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Nominal width: 5 mm
Sealing principle: Soft
Manual override: Non-detenting
Type of control: Pilot-controlled
Pilot air supply port: External
Flow direction: Non-reversible
Note on forced dynamization: Switching frequency at least once a month
Pilot pressure: 3 bar...8 bar
b-value: 0.14
C value: 1.4 l/sbar
Switching time oﬀ: 22 ms
On switching time: 10 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Temperature of medium: -5 °C...50 °C
Ambient temperature: -5 °C...50 °C
Product weight: 210 g
Type of mounting: Screw-in
Pilot exhaust air port 82/84: Sub-base
Pneumatic connection 1: Sub-base
Pneumatic connection 2: Sub-base

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 196663. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
