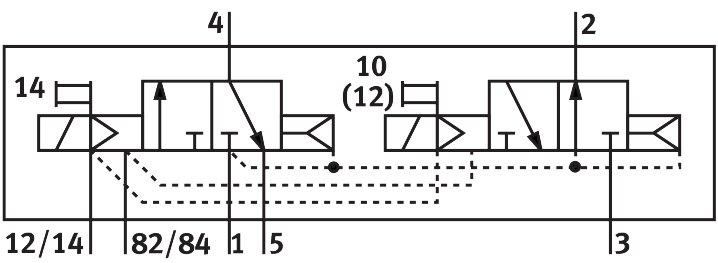

Reference imageConfirm configuration by manufacturer part number.
Festo
196665
Air solenoid valve CDVI5.0-MT2H-3OLS-3GLS
The Festo 196665 is a pilot-controlled industrial component featuring a piston gate valve structural design with a 5 mm nominal width and soft sealing principle. It offers selectable 3/2 closed or open monostable valve functions with electrical actuation, a 24V DC operating voltage, and a normal nominal flow rate of 300 l/min normalized to DIN 1343. Operating within a 3 bar to 10 bar pressure range, the unit utilizes an external pilot air supply port, pneumatic spring reset, and non-detenting manual override, while achieving a 10 ms on switching time and a 22 ms off switching time. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196665
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196665.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2, closed, monostable | 3/2, open, monostable
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 300 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Nominal width
- 5 mm
- Sealing principle
- Soft
- Manual override
- Non-detenting
- Type of control
- Pilot-controlled
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Note on forced dynamization
- Switching frequency at least once a month
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.14
- C value
- 1.4 l/sbar
- Switching time off
- 22 ms
- On switching time
- 10 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 210 g
- Type of mounting
- Screw-in
- Pilot exhaust air port 82/84
- Sub-base
- Pneumatic connection 1
- Sub-base
- Pneumatic connection 2
- Sub-base
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196665. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
