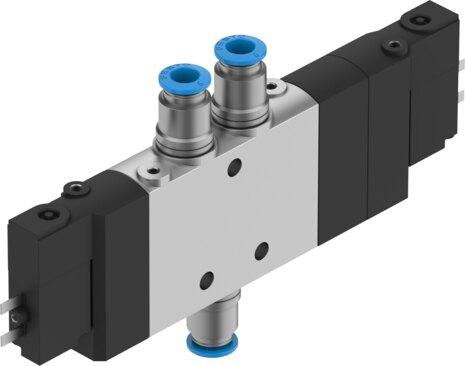

Reference imageConfirm configuration by manufacturer part number.
Festo
196899
Air solenoid valve CPE14-M1BH-5/3E-QS-6
The Festo 196899 is a 5/3 exhausted electrical piston gate valve featuring a 14 mm width, a nominal width of 6 mm, and a normal nominal flow rate of 370 l/min normalized to DIN 1343. Operating on 24V DC within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this piloted component utilizes internal pilot air supply, a soft sealing principle, an adjustable exhaust air function, and a mechanical spring reset method with QS-6 pneumatic working ports. It provides IP65 protection with a plug socket per IEC 60529, features detenting via accessory and non-detenting manual override, supports any mounting position, and holds c UL us recognized (OL) certification alongside DNV-TAA000032X and UL MH19482 maritime classifications. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196899
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196899.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 370 l/min
- Pneumatic working port
- QS-6
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 42 ms
- On switching time
- 20 ms
- Duty cycle
- 100% in combination with holding current reduction
- Max. positive test pulse with 0 signal
- 1200 µs
- Max. negative test pulse on 1 signal
- 900 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196899. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
