Festo
196908

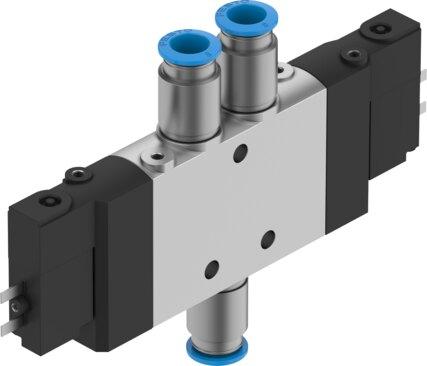

Air solenoid valve CPE14-M1BH-5J-QS-8
The Festo part number 196908 is a 5/2-way bistable industrial component featuring an electrical actuation type, a piston gate valve structural design, and a piloted type of control with internal pilot air supply. This 14 mm wide component delivers a normal nominal flow rate of 680 l/min through QS-8 pneumatic working ports, operating at a voltage of 24V DC and an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar). It incorporates an adjustable exhaust air function, a soft sealing principle, an IP65 degree of protection with a plug socket as per IEC 60529, and both detenting and non-detenting manual override options, while carrying c UL us recognized (OL) certification and DNV-TAA000032X maritime classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196908
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196908.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 680 l/min
- Pneumatic working port
- QS-8
- Operating voltage
- 24V DC
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Changeover time
- 13 ms
- Duty cycle
- 100% in combination with holding current reduction
- Max. positive test pulse with 0 signal
- 1200 µs
- Max. negative test pulse on 1 signal
- 900 µs
- Coil characteristics
- 24 V DC: 1.28 W
- Permissible voltage uctuations
- -15% / +10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196908. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
