Name: Festo 196912 Air solenoid valve CPE14-M1BH-5L-QS-8
Brand: Festo

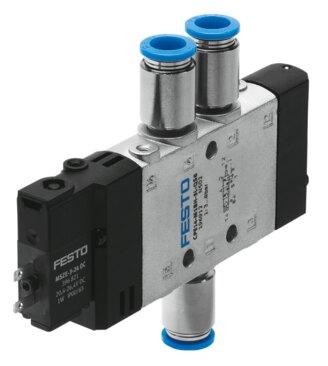

Air solenoid valve CPE14-M1BH-5L-QS-8

The Festo 196912 is a 14 mm wide, 5/2-way monostable industrial component utilizing a piston gate valve structural design with soft sealing principles and internal pilot air supply. Operating at 24V DC within a pressure range of 3 bar to 8 bar, this electrically actuated piloted valve delivers a normal nominal flow rate of 680 l/min through QS-8 pneumatic working ports and features an adjustable exhaust air function, pneumatic spring reset, and IP65 protection when paired with a plug socket. It carries c UL us recognition and DNV maritime classification, while offering both detenting and non-detenting manual override options for flexible mounting positions. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 196912
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 196912.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 680 l/min
Pneumatic working port: QS-8
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Maritime classication: See certicate
Certicate issuing authority: DNV-TAA000032X | UL MH19482
Degree of protection: IP65 | With plug socket | As per IEC 60529
Nominal width: 6 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting via accessory | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Valve position ID: Label holder
Lap: Positive overlap
Switching time oﬀ: 32 ms
On switching time: 24 ms
Duty cycle: 100% in combination with holding current reduction
Max. positive test pulse with 0 signal: 1200 µs
Max. negative test pulse on 1 signal: 900 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 196912. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
