Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

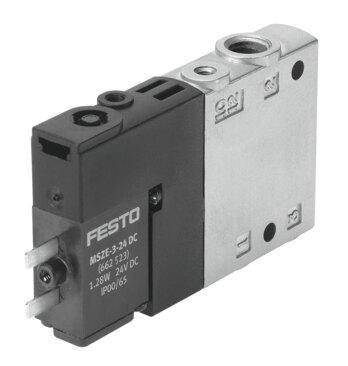

Reference imageConfirm configuration by manufacturer part number.
Festo
196918
Air solenoid valve CPE10-M1BH-3OLS-M7
The Festo part number 196918 is an electrical 3/2-way monostable open industrial component featuring a 10 mm width, a piston gate valve structural design, and a soft sealing principle. It delivers a normal nominal flow rate of 400 l/min through an M7 pneumatic working port, operating at 24V DC within an operating pressure range of -0.09 MPa to 1 MPa. This IP65-rated component utilizes a piloted type of control with an external pilot air supply port, pneumatic spring reset, and includes c UL us recognition along with DNV maritime classification. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196918
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196918.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 4 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...0.8 MPa
- Pilot pressure
- 2.5 bar...8 bar
- Switching time off
- 14 ms
- On switching time
- 14 ms
- Duty cycle
- 100% in combination with holding current reduction
- Max. positive test pulse with 0 signal
- 1200 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196918. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
