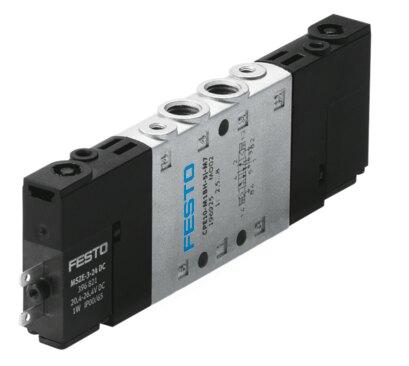

Reference imageConfirm configuration by manufacturer part number.
Festo
196925
Air solenoid valve CPE10-M1BH-5J-M7
The Festo 196925 is an electrically actuated 5/2-way bistable industrial component featuring a 10 mm width, a 4 mm nominal width, and a normal nominal flow rate of 350 l/min normalized to DIN 1343. Built with a piston gate valve structural design and soft sealing principle, this piloted component operates on 24V DC within an operating pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar). It includes M7 pneumatic working ports, adjustable exhaust air function, internal pilot air supply, non-reversible flow direction, and IP65 degree of protection when used with a plug socket per IEC 60529. Certified by c UL us - recognized (OL) and DNV-TAA000032X with any mounting position and manual override via detenting accessory or non-detenting, this unit meets maritime classification requirements as specified in the certificate. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196925
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196925.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 350 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Changeover time
- 8 ms
- Duty cycle
- 100% in combination with holding current reduction
- Max. positive test pulse with 0 signal
- 1200 µs
- Max. negative test pulse on 1 signal
- 900 µs
- Coil characteristics
- 24 V DC: 1.28 W
- Permissible voltage uctuations
- -15% / +10%
