Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

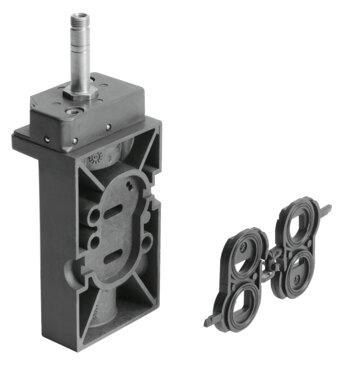

Reference imageConfirm configuration by manufacturer part number.
Festo
196982
Air solenoid valve NVF3-MOH-5/2-K-1/4
The Festo part number 196982 is a 5/2- or 3/2-way monostable industrial component featuring an electrical actuation type, a 53 mm width, and a 7 mm nominal width. Built with a plate seat structural design, soft sealing principle, and negative overlap lap, it delivers a normal nominal flow rate of 900 l/min and an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) utilizing a piloted control type with a non-reversible flow direction. Additional technical attributes include an adjustable exhaust air function, a mechanical spring reset method, IP65 degree of protection per IEC 60529, sub-base pneumatic working ports, VDI/VDE 3845 (NAMUR) standard conformity, detenting and non-detenting manual override, and an operating voltage supplied via a separately ordered solenoid coil for mounting in any position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 196982
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 196982.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2- or 3/2-way, monostable
- Actuation type
- Electrical
- Width
- 53 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | As per IEC 60529
- Nominal width
- 7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.33
- C value
- 4.2 l/sbar
- Switching time off
- 38 ms
- On switching time
- 13 ms
- Permissible frequency uctuations
- +/- 10%
- Permissible voltage uctuations
- +/- 10%
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 196982. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
