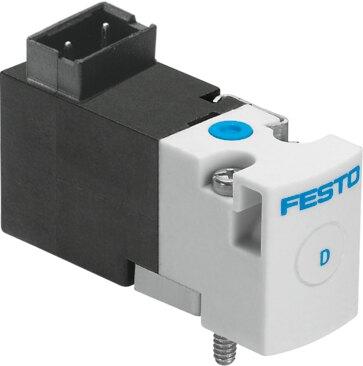

Reference imageConfirm configuration by manufacturer part number.
Festo
197022
Air solenoid valve MHA1-M5H-3/2O-0,6-TC
The Festo 197022 is a 3/2-way monostable open industrial component featuring electrical actuation and a direct control type. Designed with a 10 mm width, a nominal width of 0.7 mm, and a normal nominal flow rate of 10 l/min, this poppet valve includes a mechanical spring reset method and soft sealing principle. It operates within a pressure range of 0 MPa to 0.6 MPa (0 bar to 6 bar, 0 psi to 87 psi) at 12V DC and features an IP40 degree of protection with c UL us recognition under UL MH19482. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197022
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197022.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 10 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 12V DC
- Operating pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Nominal width
- 0.7 mm
- Width dimension
- 10 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve position ID
- Label
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Max. switching frequency
- 20 Hz
- Switching time off
- 4 ms
- On switching time
- 4 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1 W
- Coil characteristics
- 12 V DC: 1.0 W
- Permissible voltage uctuations
- +/- 10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197022. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
