Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

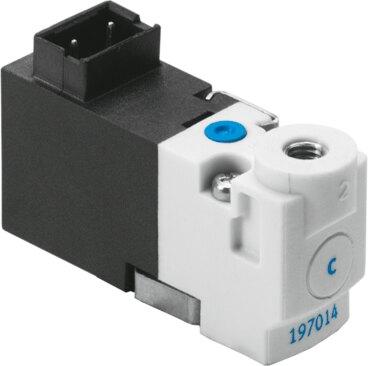

Reference imageConfirm configuration by manufacturer part number.
Festo
197030
Air solenoid valve MHP1-M4H-3/2O-M3-TC
The Festo 197030 is a 10 mm wide electrical 3/2-way monostable open poppet valve featuring a mechanical spring reset, an M3 pneumatic working port, and a soft sealing principle. It operates at 5V DC across an operating pressure range of 0 bar to 6 bar (0 MPa to 0.6 MPa, 0 psi to 87 psi) with a normal nominal flow rate of 10 l/min, a nominal width of 0.7 mm, and a direct type of control. This IP40-rated component includes an adjustable exhaust air function, a non-detenting manual override, supports any mounting position, and holds a c UL us recognition certification under UL MH19482. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197030
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197030.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 10 l/min
- Pneumatic working port
- M3
- Operating voltage
- 5V DC
- Operating pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Nominal width
- 0.7 mm
- Width dimension
- 10 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve position ID
- Label
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Max. switching frequency
- 20 Hz
- Switching time off
- 4 ms
- On switching time
- 4 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1 W
- Coil characteristics
- 5 V DC: 1.0 W
- Permissible voltage uctuations
- +/- 10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197030. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
