Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

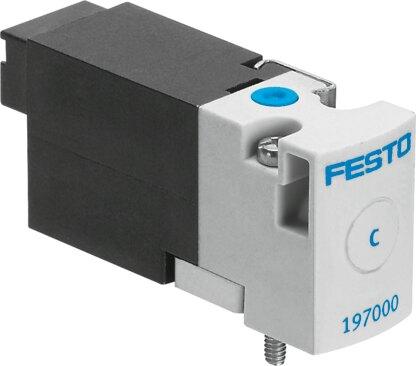

Reference imageConfirm configuration by manufacturer part number.
Festo
197038
Air solenoid valve MHA1-M1H-2/2G-0,9-HC
The Festo 197038 is a 10 mm wide direct-controlled 2/2-way closed monostable industrial component featuring a poppet valve structural design with a mechanical spring reset method and soft sealing principle. This electrical component operates on 24V DC with an operating pressure range of -0.09 MPa to 0.2 MPa (-0.9 bar to 2 bar / -13.05 psi to 29 psi) and delivers a normal nominal flow rate of 14 l/min through a sub-base pneumatic working port. Certified by c UL us - recognized (OL) under authority UL MH19482, the unit includes a non-detenting manual override, an IP40 degree of protection, a nominal width of 0.9 mm, and supports any mounting position with a non-throttled exhaust air function and non-reversible flow direction. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197038
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197038.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 14 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.2 MPa | -0.9 bar...2 bar | -13.05 psi...29 psi
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Nominal width
- 0.9 mm
- Width dimension
- 10 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve position ID
- Label
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Suitability for vacuum
- Yes
- Max. switching frequency
- 20 Hz
- Switching time off
- 5 ms
- On switching time
- 4 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1 W
- Max. positive test pulse with 0 signal
- 500 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197038. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
