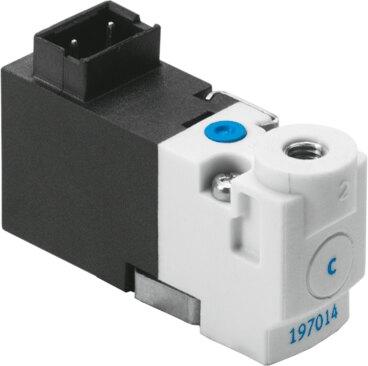

Reference imageConfirm configuration by manufacturer part number.
Festo
197049
Air solenoid valve MHP1-M5H-2/2G-M3-TC
The Festo 197049 is a 10 mm wide direct-controlled electrical industrial component featuring a 2/2-way closed monostable poppet valve design with a mechanical spring reset and a soft sealing principle. Operating at 12V DC, this unit supports a normal nominal flow rate of 14 l/min, an operating pressure range of -0.09 MPa to 0.2 MPa (-0.9 bar to 2 bar / -13.05 psi to 29 psi), an M3 pneumatic working port, and a nominal width of 0.9 mm. It includes a non-detenting manual override, non-reversible flow direction, cannot be throttled on exhaust air, offers IP40 protection, and carries c UL us recognition under certificate UL MH19482. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197049
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197049.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 14 l/min
- Pneumatic working port
- M3
- Operating voltage
- 12V DC
- Operating pressure
- -0.09 MPa...0.2 MPa | -0.9 bar...2 bar | -13.05 psi...29 psi
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Nominal width
- 0.9 mm
- Width dimension
- 10 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve position ID
- Label
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Suitability for vacuum
- Yes
- Max. switching frequency
- 20 Hz
- Switching time off
- 5 ms
- On switching time
- 4 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1 W
- Coil characteristics
- 12 V DC: 1.0 W
