Festo
1971550

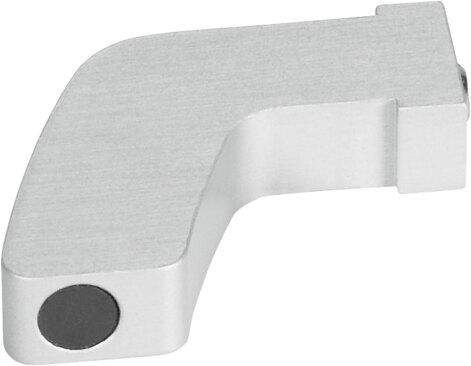

Switch lug DASI-Q11-63-A-SL
This Festo industrial component, part number 1971550, features a size 63 design for T-slots and fits a piston diameter of Ø63. The unit weighs 15 g and offers a corrosion resistance class (CRC) of 2 for moderate corrosion stress, along with VDMA24364-B1/B2-L LABS conformity and RoHS-compliant materials. Mounting is achieved via clamping in a T slot, with a threaded pin, or using an internal thread, while the included screws are made of galvanized steel for an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1971550
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1971550.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Design
- For T-slot
- for piston Ø
- Ø63
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 15 g
- Type of mounting
- Clamped in T slot | With threaded pin | With internal thread
- Note on materials
- RoHS compliant
- Material of screws
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1971550. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
