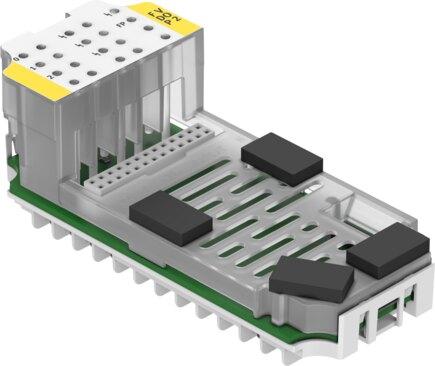

Name: Festo 1971599 Output module CPX-FVDA-P2
Brand: Festo

Output module CPX-FVDA-P2

The Festo industrial component, part number 1971599, measures 50 mm by 107 mm by 55 mm including the interlinking block and connection system, and weighs 50 g. Built with a PA-reinforced and PC housing, it features comprehensive LED indicators and diagnostics including wire break, short circuit or overload, cross circuit, and undervoltage of pneumatic valves. Operating within an ambient temperature range of -5 °C to 50 °C and a storage temperature of -20 °C to 70 °C, it supports a maximum cable length of 200 m and a maximum address capacity of 6 bytes for both inputs and outputs. Certifications include cUL us-recognized (OL) alongside TÜV Rheinland approvals, and it complies with relevant EU and UKCA directives for EMC, machinery, and RoHS. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1971599
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1971599.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 55 mm
Product weight: 50 g
Ambient temperature: -5 °C...50 °C
Note on ambient temperature: Observe derating curve for pneumatic interface
Storage temperature: -20 °C...70 °C
Degree of protection: Depending on terminal block
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
Max. cable length: 200 m
LABS (PWIS) conformity: VDMA24364-B2-L
CE marking (see declaration of conformity): As per EU EMC directive | as per EU machinery directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK instructions for machines | To UK RoHS instructions
Certication: c UL us - recognized (OL)
Certicate issuing authority: German Technical Control Board (TÜV) Rhld 01/205/5294.02/23 | German Technical Control Board (TÜV) Rheinland 01/205U/5294.01/23
Note on materials: RoHS compliant
Housing material: PA-reinforced | PC
PFH: 1E-09
LED indicators: 1 fail-safe mode protocol active | 1 group diagnostics | 3 channel diagnostics | 3 channel status
Diagnostics: Wire break per channel | Short circuit/overload per channel | Cross circuit | Undervoltage of pneumatic valves
Max. address capacity inputs: 6 byte
Max. address capacity outputs: 6 byte
No. of outputs: 2

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1971599. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
