Festo
197208

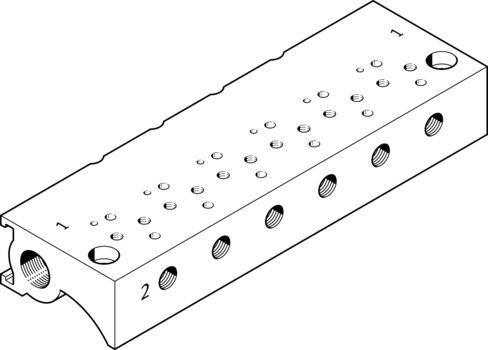

Manifold MHA1-P4-2-M3
The Festo 197208 is an industrial component designed with a wrought aluminum alloy sub-base accommodating a maximum of four valve positions via through-hole mounting. It operates within a pressure range of 0 bar to 8 bar using compressed air meeting ISO 8573-1:2010 [7:4:4], supporting oil lubrication operation and functioning at ambient temperatures between -10 °C and 60 °C. Featuring M7 pneumatic connection 1 and M3 pneumatic connection 2 with internal thread valve mounting, this unit provides a corrosion resistance class of CRC 1 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197208
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197208.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 4
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M7
- Pneumatic connection 2
- M3
- Material of sub-base
- Wrought aluminum alloy
