Festo
197220

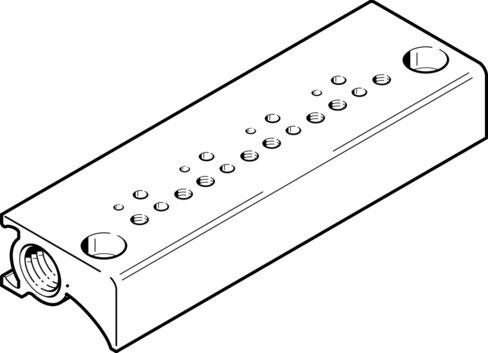

Manifold block MHP1-P8-2-PI
The Festo part number 197220 is an industrial component featuring a wrought aluminum alloy sub-base designed to accommodate a maximum of eight valve positions via through-hole mounting. Operating within a pressure range of 0 bar to 8 bar at ambient temperatures between -10 °C and 60 °C, this unit utilizes compressed air conforming to ISO 8573-1:2010 [7:4:4] as its operating medium, with oil lubrication permitted and subsequently required for continued operation. It is built with M7 pneumatic connection 1, internal thread pneumatic valve mounting, a corrosion resistance class (CRC) of 1, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197220
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197220.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 8
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M7
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197220. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
