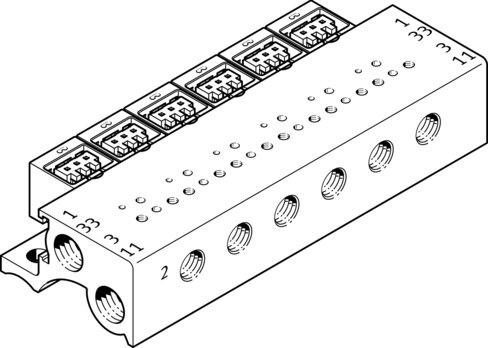

Reference imageConfirm configuration by manufacturer part number.
Festo
197226
Manifold MHA1-PR10-3-M3-PI
The Festo 197226 is an industrial component featuring a wrought aluminum alloy sub-base designed for up to 10 valve positions with through-hole mounting. Operating within a pressure range of 0 bar to 8 bar and an ambient temperature range of -10 °C to 60 °C, this unit utilizes compressed air as per ISO 8573-1:2010 [7:4:4] with provisions for oil lubrication. It includes M7 pneumatic connections for ports 1 and 3, an M3 pneumatic connection for port 2, internal thread pneumatic valve mounting, a CRC rating of 1 for low corrosion stress, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197226
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197226.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 10
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M7
- Pneumatic connection 2
- M3
- Pneumatic connection 3
- M7
- Material of sub-base
- Wrought aluminum alloy
