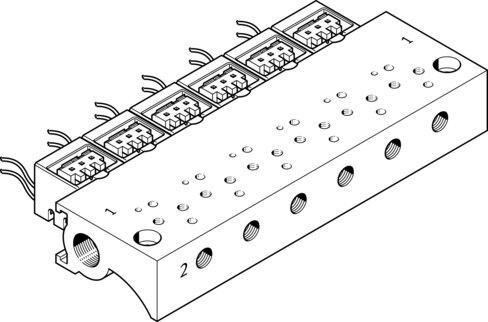

Reference imageConfirm configuration by manufacturer part number.
Festo
197230
Manifold MHA1-P8-2-M3-PI
The Festo 197230 industrial component is a sub-base designed for a maximum of 8 valve positions, featuring through-hole sub-base mounting and internal thread pneumatic valve mounting. Manufactured from wrought aluminum alloy with a corrosion resistance class (CRC) of 1 and VDMA24364-B2-L LABS conformity, this unit operates within a pressure range of 0 bar to 8 bar and ambient temperatures from -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. It includes M7 pneumatic connection 1 and M3 pneumatic connection 2, and allows operation with oil lubrication which is required for further use. Submit your exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197230
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197230.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 8
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M7
- Pneumatic connection 2
- M3
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197230. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
