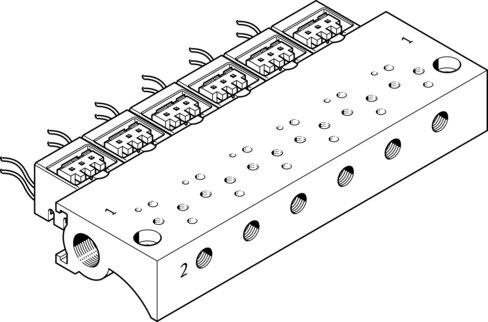

Reference imageConfirm configuration by manufacturer part number.
Festo
197231
Manifold MHA1-P10-2-M3-PI
The Festo part number 197231 is an industrial component featuring a wrought aluminum alloy sub-base designed to accommodate a maximum of 10 valve positions with through-hole sub-base mounting and internal thread pneumatic valve mounting. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of 0 bar to 8 bar and ambient temperatures from -10 °C to 60 °C, while permitting oil lubrication that remains required for further use. This unit includes M7 pneumatic connection 1 and M3 pneumatic connection 2, exhibits a corrosion resistance class (CRC) of 1 for low corrosion stress, and complies with VDMA24364-B2-L LABS (PWIS) conformity standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197231
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197231.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 10
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M7
- Pneumatic connection 2
- M3
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197231. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
