Festo
197235

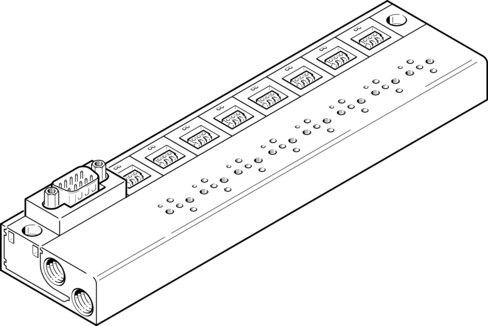

Manifold block MHP1-PR8-3-PI-D9
The Festo 197235 is an industrial component designed to support a maximum of 8 valve positions with an operating pressure range of 0 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. Constructed from a wrought aluminum alloy sub-base featuring M7 pneumatic connections 1 and 3, this unit offers through-hole sub-base mounting and internal thread pneumatic valve mounting. Operation with oil lubrication is possible and required for further use, functioning within an ambient temperature range of -10 °C to 60 °C while maintaining a corrosion resistance class of CRC 1 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197235
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197235.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 8
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M7
- Pneumatic connection 3
- M7
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197235. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
