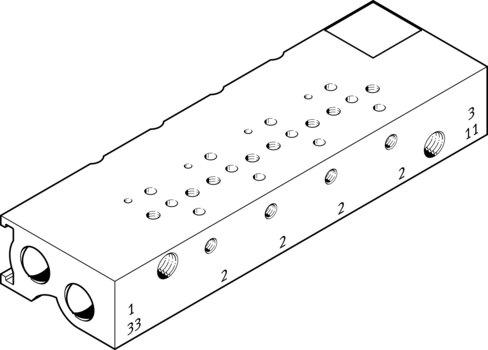

Reference imageConfirm configuration by manufacturer part number.
Festo
197251
Manifold MHA1-PR10-3-M3-PI-PCB
The Festo part number 197251 is an industrial component featuring a wrought aluminum alloy sub-base designed for a maximum of 10 valve positions. It operates within a pressure range of 0 bar to 8 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], and permits oil lubrication for continued use. This unit includes M5 pneumatic connections for ports 1 and 3, an M3 connection for port 2, internal threads for valve mounting, and a CRC rating of 2 with VDMA24364-B2-L LABS conformity for ambient temperatures between 0 °C and 40 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197251
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197251.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 10
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...40 °C
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M3
- Pneumatic connection 3
- M5
- Material of sub-base
- Wrought aluminum alloy
