Festo
1972527

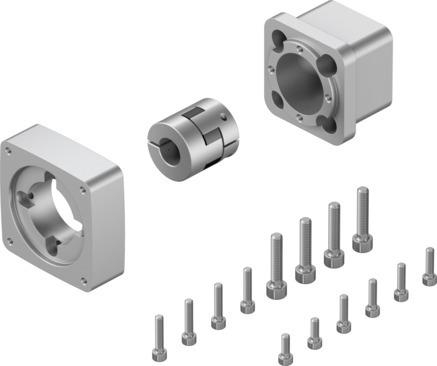

Axial kit EAMM-A-N48-60G
The Festo 1972527 industrial component features a nominal length of 53.1 mm, a product weight of 509 g, and a mass moment of inertia of 14.5 kgmm², utilizing an actuator interface code of N48 and a motor input interface code of 60G. Designed for any mounting position, this RoHS-compliant part delivers a transferable torque of 12.5 Nm at a maximum rotational speed of 8000 rpm while maintaining an IP40 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C and a storage temperature range of -25 °C to 60 °C, the unit adheres to VDMA24364-B2-L LABS conformity and 0 to 95% relative air humidity limits. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1972527
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1972527.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 53.1 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 509 g
- Interface code, actuator
- N48
- Interface code, motor in
- 60G
- Note on materials
- RoHS-compliant
