Festo
197253

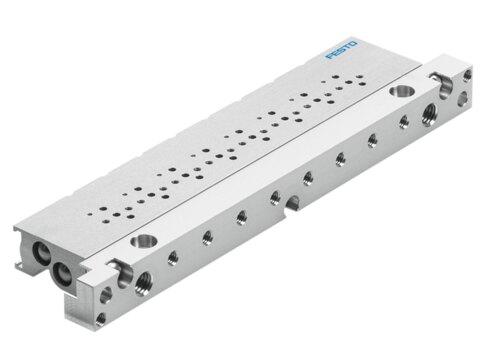

Manifold MHA1-PR4-3-PI-PCBM
This Festo industrial component, part number 197253, is designed with a wrought aluminum alloy sub-base and accommodates a maximum of four valve positions using internal thread mounting. It operates within a pressure range of 0 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:4:4], supporting oil-lubricated operation where required, and features M5 pneumatic connections for ports 1 and 3 alongside an M3 connection for port 2. Built for ambient temperatures from 0 °C to 40 °C, the unit offers a CRC corrosion resistance class of 2 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197253
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197253.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 4
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...40 °C
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M3
- Pneumatic connection 3
- M5
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197253. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
