Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

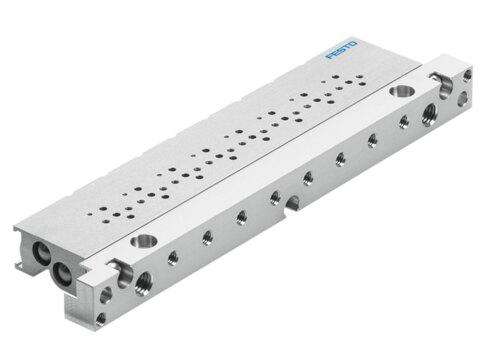

Reference imageConfirm configuration by manufacturer part number.
Festo
197254
Manifold MHA1-PR6-3-PI-PCBM
The Festo part number 197254 is an industrial component featuring a wrought aluminum alloy sub-base designed to accommodate a maximum of six valve positions. It operates within a pressure range of 0 bar to 8 bar using compressed air meeting ISO 8573-1:2010 [7:4:4] standards, with ambient temperatures spanning 0 °C to 40 °C and oil lubrication permitted for further use. This unit provides M5 pneumatic connections for ports 1 and 3, an M3 pneumatic connection for port 2, internal thread valve mounting, a CRC rating of 2 for moderate corrosion stress, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197254
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197254.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 6
- Operating pressure
- 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...40 °C
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M3
- Pneumatic connection 3
- M5
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197254. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
