197330

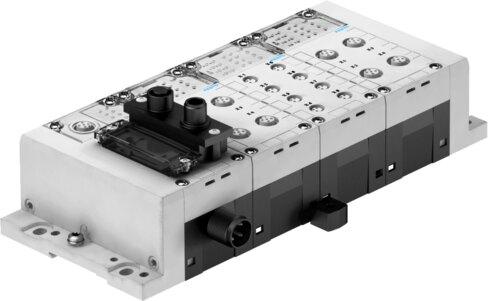

Name: Festo 197330 Terminal CPX
Brand: Festo

Terminal CPX

The Festo part number 197330 is an industrial component featuring fieldbus electrical actuation and an integrated controller, operating within an ambient temperature range of -5 °C to 50 °C. It provides IP65 and IP67 degrees of protection, VDMA24364-B2-L LABS conformity, and ATEX Zone 2 explosion protection with an EPL Gc rating and Ex ec IIC T4 Gc X gas ignition protection type. Diagnostic capabilities include channel-oriented and module-oriented diagnostics, undervoltage monitoring, and a diagnostic memory, alongside LED indicators for bus status, channel status, module state, and system status. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 197330
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 197330.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: Fieldbus | Integrated controller
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
LABS (PWIS) conformity: VDMA24364-B2-L
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
KC characters: KC-EMV
Certication: RCM compliance mark | c UL us - recognized (OL)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (RU) | Zone 2 (UKEX)
ATEX category gas: II 3G
Explosion protection certication outside the EU: EPL Gc (GB) | EPL Gc (RU)
Type of ignition protection for gas: Ex ec IIC T4 Gc X
Explosive ambient temperature: -5°C <= Ta <= +50°C
LED indicators: Bus status | Channel status | Module state | System status
Diagnostics: Diagnostic memory | Channel-oriented and module-oriented diagnostics | Undervoltage of modules
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte
Parameterization: Diagnostic behavior | Fail-safe response | forcing of channels

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 197330. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
