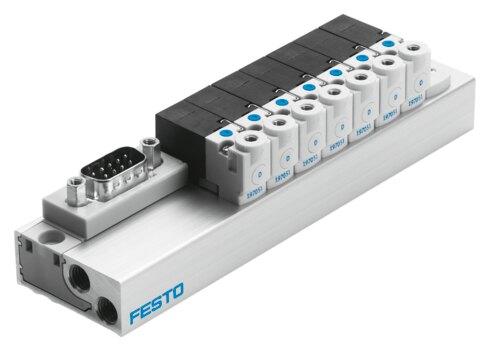

Reference imageConfirm configuration by manufacturer part number.
Festo
197334
Valve manifold MH1
The Festo 197334 is a 10 mm industrial component featuring a direct-controlled poppet valve with spring return, supporting 2/2-way and 3/2-way configurations with soft sealing and an adjustable exhaust air function. Designed for compressed air media according to ISO 8573-1:2010 [7:4:4] with vacuum suitability, it operates across a pressure range of -0.9 bar to 8 bar, delivering a maximum standard nominal flow rate of 10 l/min at an operating voltage of 24 V AC, or 5 V, 12 V, and 24 V DC. This c UL us-recognized part carries a CE marking per the EU RoHS directive and is equipped with an LED signal status display. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197334
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197334.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable | 3/2-way, closed, monostable | 3/2-way, monostable, open
- Valve size
- 10 mm
- Max. standard nominal ow rate
- 10 l/min at 10 mm
- Pneumatic working port
- M3
- Operating pressure
- -0.9 bar...8 bar
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- Certicate issuing authority
- UL MH19482
- Nominal width
- 0.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Type of control
- directly
- Signal status display
- LED
- Suitability for vacuum
- Yes
- Nominal operating voltage AC
- 24 V
- Nominal operating voltage DC
- 12 V | 24 V | 5 V
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -5 °C...40 °C
- Degree of protection
- IP40 | IP65
- Ambient temperature
- -5 °C...40 °C
- Electrical actuation
- Individual connection | Multi-pin
- Note on materials
- RoHS compliant
