Festo
197379

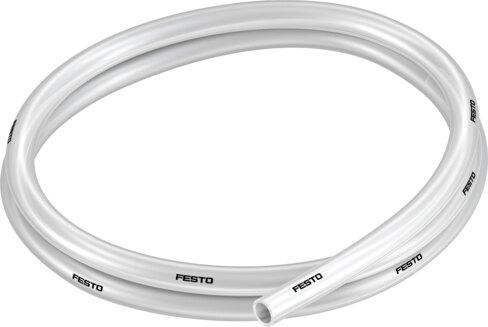

Plastic tubing PUN-H-10X1,5-NT
The Festo 197379 industrial component is a 10 mm outside diameter and 7 mm inside diameter ether-based TPE-U tubing designed with a 28 mm minimum bending radius and a 52 mm bending radius relevant for flow rate. Suitable for energy chains, this product operates across an ambient temperature range of -35 °C to 60 °C with a pneumatic connection for a 10 mm outside diameter plug connection and weighs 0.0465 kg/m. It accommodates compressed air as per ISO 8573-1:2010 [7:-:-] and water, featuring an operating pressure of -0.095 MPa to 0.6 MPa for the entire temperature range and -0.095 MPa to 1 MPa for temperature-dependent operation. To receive pricing and availability, submit your exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197379
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197379.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 10 mm
- Bending radius relevant for ow rate
- 52 mm
- Inside diameter
- 7 mm
- Min. bending radius
- 28 mm
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0465 kg/m
- Pneumatic connection
- For plug connection outside diameter 10 mm
- Color
- nature
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
