Festo
197583

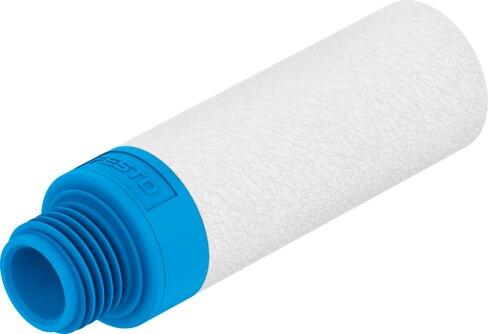

Pneumatic muffler UO-1/8
The Festo part number 197583 is an open-design industrial component featuring a G1/8 pneumatic connection and any mounting position. This component operates at pressures from 0 MPa to 0.8 MPa (0 bar to 8 bar) with compressed air as per ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -10 °C to 60 °C. Weighing 5 g, the RoHS-compliant unit incorporates VDMA24364-B1/B2-L LABS (PWIS) conformity alongside protective grounding cushioning insert and screwed plug materials. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197583
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197583.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Muffler open
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 5 g
- Pneumatic connection
- G1/8
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- Protective grounding
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197583. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
