Festo
197584

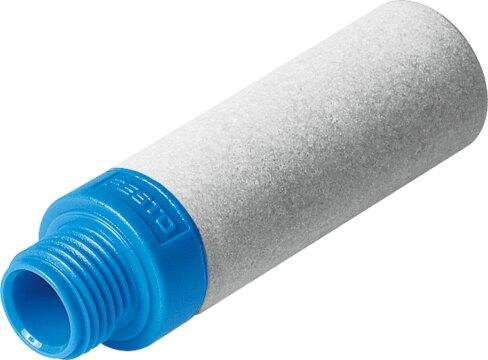

Pneumatic muffler UO-1/4
The Festo 197584 is an open muffler industrial component featuring a G1/4 pneumatic connection and an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar). Weighing 8 g with an ambient temperature range of -10 °C to 60 °C, this RoHS-compliant part utilizes compressed air as an operating medium according to ISO 8573-1:2010 [7:4:4] and maintains VDMA24364-B1/B2-L LABS (PWIS) conformity. It includes a structural design with any mounting position, alongside protective grounding utilized for the cushioning insert material and screwed plug. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197584
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197584.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Muffler open
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 8 g
- Pneumatic connection
- G1/4
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- Protective grounding
- Note on materials
- RoHS compliant
