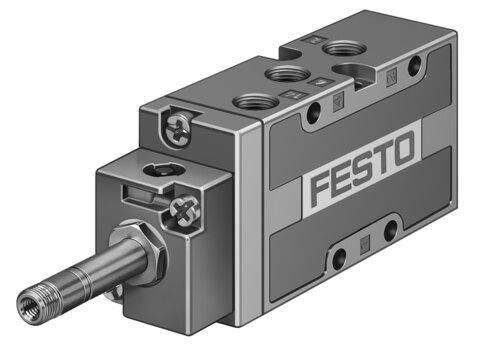

Reference imageConfirm configuration by manufacturer part number.
Festo
19759
Air solenoid valve MFH-5-1/8-S-B
The Festo 19759 is a 5/2-way monostable industrial component featuring an electrical actuation type, a plate seat structural design, and a mechanical spring reset method with a negative overlap lap. This piloted unit operates within a pressure range of 0 bar to 10 bar, utilizes a G1/8 pneumatic working port, and delivers a normal nominal flow rate of 750 l/min alongside a nominal width of 5 mm and soft sealing principle. It functions with an external pilot air supply port requiring a pilot pressure of 2 bar to 10 bar, a b-value of 0.34, a C value of 3 l/sbar, and a non-detenting manual override in any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 19759
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 19759.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 750 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Nominal width
- 5 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- b-value
- 0.34
- C value
- 3 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 30 ms
- On switching time
- 10 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 19759. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
