197617

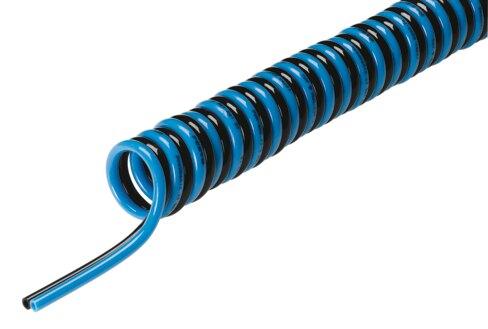

Name: Festo 197617 DUO spiral plastic tubing PUN-4X0,75-S-0,5-DUO-BS
Brand: Festo

DUO spiral plastic tubing PUN-4X0,75-S-0,5-DUO-BS

The Festo part number 197617 is an industrial component featuring a TPE-U(PU) pneumatic tubing construction in blue and black with a shore hardness of D 52 +/-3 and a product weight of 25 g. This component supports a working length of 0.5 m, a block length of 0.268 m, an outside diameter of 4 mm, an inside diameter of 2.6 mm, a winding diameter of 25 mm, and 20 windings. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across a temperature-dependent operating pressure of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) and an ambient temperature range of -35 °C to 60 °C, meeting VDMA24364-B2-L LABS (PWIS) conformity with TÜV certification under certificate issuing authority B 013277 0527 00. Pneumatic connections are accommodated via a 4 mm outside diameter plug connection, or an inside diameter 3 mm barbed fitting with or without a union nut. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 197617
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 197617.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working length: 0.5 m
Outside diameter: 4 mm
Block length: 0.268 m
Inside diameter: 2.6 mm
Winding diameter: 25 mm
Number of windings: 20
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -35 °C...60 °C
Product weight: 25 g
Pneumatic connection: For plug connection outside diameter 4 mm | For barbed tting, inside diameter 3 mm, with union nut | For barbed tting, inside diameter 3 mm
Color: Blue/black
Shore hardness: D 52 +/-3
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 197617. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
