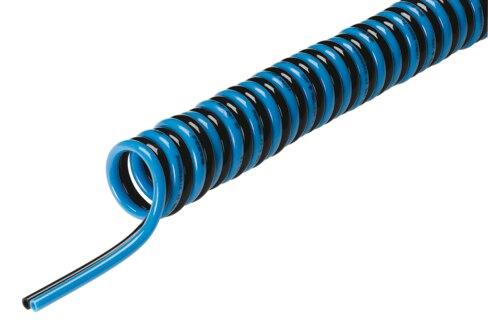

Reference imageConfirm configuration by manufacturer part number.
Festo
197625
DUO spiral plastic tubing PUN-8X1,25-S-6-DUO-BS
The Festo part number 197625 is a blue/black pneumatic tubing manufactured from TPE-U(PU) with a working length of 6 m, an outside diameter of 8 mm, an inside diameter of 5.7 mm, and a product weight of 870 g. It features a block length of 1.608 m, a winding diameter of 60 mm, 87 windings, and a Shore hardness of D 52 +/-3, while operating with compressed air as per ISO 8573-1:2010 [7:-:-] across a temperature-dependent operating pressure of -0.095 MPa to 1 MPa and an ambient temperature range of -35 °C to 60 °C. Certified by TÜV under authority B 013277 0527 00 with VDMA24364-B2-L LABS conformity, this component accommodates 8 mm outside diameter plug connections alongside 6 mm inside diameter barbed fittings with or without a union nut. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197625
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197625.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 6 m
- Outside diameter
- 8 mm
- Block length
- 1.608 m
- Inside diameter
- 5.7 mm
- Winding diameter
- 60 mm
- Number of windings
- 87
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight
- 870 g
- Pneumatic connection
- For plug connection outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut | For barbed tting, inside diameter 6 mm
- Color
- Blue/black
- Shore hardness
- D 52 +/-3
- Material of pneumatic tubing
- TPE-U(PU)
