Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

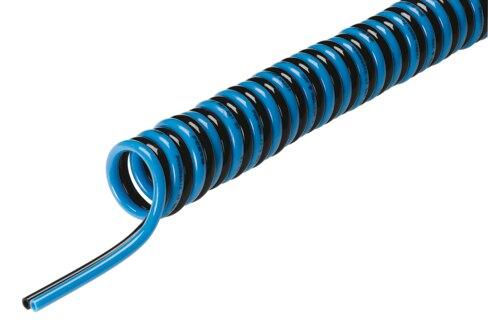

Reference imageConfirm configuration by manufacturer part number.
Festo
197627
DUO spiral plastic tubing PUN-10X1,5-S-2-DUO-BS
The Festo part number 197627 is a blue and black industrial component manufactured from TPE-U(PU) with a Shore hardness of D 52 +/-3 and a product weight of 490 g. It features a working length of 2 m, a block length of 0.66 m, an outside diameter of 10 mm, an inside diameter of 7 mm, a winding diameter of 80 mm, 22 windings, and pneumatic connections for plug connections with an outside diameter of 10 mm. Operating with compressed air as per ISO 8573-1:2010 [7:-:-], it supports a temperature-dependent operating pressure of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) across an ambient temperature range of -35 °C to 60 °C, and complies with VDMA24364-B2-L LABS (PWIS) standards alongside TÜV certification under certificate issuing authority B 013277 0527 00. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197627
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197627.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 2 m
- Outside diameter
- 10 mm
- Block length
- 0.66 m
- Inside diameter
- 7 mm
- Winding diameter
- 80 mm
- Number of windings
- 22
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight
- 490 g
- Pneumatic connection
- For plug connection outside diameter 10 mm
- Color
- Blue/black
- Shore hardness
- D 52 +/-3
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197627. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
