Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

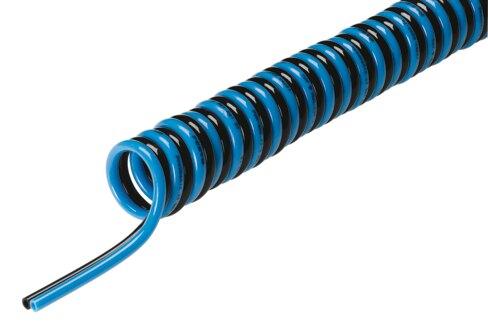

Reference imageConfirm configuration by manufacturer part number.
Festo
197630
DUO spiral plastic tubing PUN-12X2-S-2-DUO-BS
The Festo 197630 is an industrial component featuring a blue and black TPE-U(PU) pneumatic tubing construction with a working length of 2 m, an outside diameter of 12 mm, an inside diameter of 8 mm, and a block length of 0.704 m. This part operates with compressed air as per ISO 8573-1:2010 [7:-:-] across a temperature-dependent operating pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) and an ambient temperature range of -35 °C to 60 °C. Certified by TÜV under authority B 013277 0527 00, it incorporates a winding diameter of 95 mm, 20 windings, a Shore hardness of D 52 +/-3, VDMA24364-B2-L LABS conformity, a pneumatic connection for a plug connection outside diameter of 12 mm, and a product weight of 830 g. Submit part number 197630 along with your quantity and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 197630
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 197630.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 2 m
- Outside diameter
- 12 mm
- Block length
- 0.704 m
- Inside diameter
- 8 mm
- Winding diameter
- 95 mm
- Number of windings
- 20
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight
- 830 g
- Pneumatic connection
- For plug connection outside diameter 12 mm
- Color
- Blue/black
- Shore hardness
- D 52 +/-3
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 197630. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
