Festo
19796

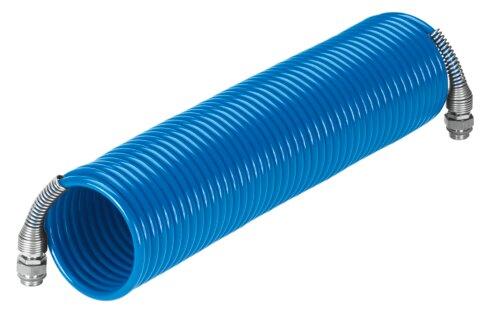

Spiral plastic tubing PPS-6-7,5-1/4-BL
This Festo industrial component, part number 19796, features a working length of 7.5 m, an outside diameter of 7.8 mm, an inside diameter of 6.2 mm, and a block length of 0.43 m with 43 windings at a winding diameter of 75 mm. The assembly operates with compressed air as per ISO 8573-1:2010 [7:-:-] across a temperature-dependent operating pressure of -0.95 bar to 17.2 bar and an ambient temperature range of -30 °C to 80 °C. It is equipped with G1/4 external thread pneumatic connections on both ends made of brass, a galvanized steel antikink device, and a blue body, yielding a total product weight of 298 g with a nominal tightening torque of 11 Nm (±20% tolerance), a corrosion resistance class of CRC 1, VDMA24364-B2-L LABS conformity, and RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 19796
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 19796.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 7.5 m
- Outside diameter
- 7.8 mm
- Block length
- 0.43 m
- Inside diameter
- 6.2 mm
- Winding diameter
- 75 mm
- Number of windings
- 43
- Temperature-dependent operating pressure
- -0.95 bar...17.2 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Nominal tightening torque
- 11 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 298 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- External thread G1/4
- Color
- Blue
- Material of connecting thread
- Brass
- Note on materials
- RoHS compliant
- Antikink device material
- Steel | Galvanized
- Material of pneumatic tubing
- PA12-P
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 19796. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
