Festo
19798

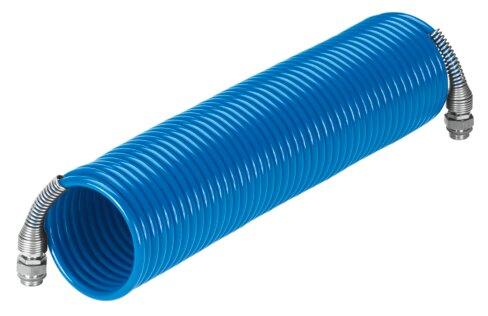

Spiral plastic tubing PPS-4-7,5-1/4-BL
The Festo 19798 blue industrial component features a working length of 7.5 m, an outside diameter of 6.3 mm, an inside diameter of 4.7 mm, and a block length of 0.34 m with 44 windings across a 75 mm winding diameter. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] at a temperature-dependent operating pressure of -0.95 bar to 21.2 bar and an ambient temperature range of -30 °C to 80 °C. Constructed with brass external thread G1/4 pneumatic connections on both ends, galvanized steel antikink devices, and RoHS-compliant materials, this 249 g part has a corrosion resistance class of 1, a LABS conformity of VDMA24364-B2-L, and a nominal tightening torque of 11 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 19798
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 19798.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 7.5 m
- Outside diameter
- 6.3 mm
- Block length
- 0.34 m
- Inside diameter
- 4.7 mm
- Winding diameter
- 75 mm
- Number of windings
- 44
- Temperature-dependent operating pressure
- -0.95 bar...21.2 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Nominal tightening torque
- 11 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 249 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- External thread G1/4
- Color
- Blue
- Material of connecting thread
- Brass
- Note on materials
- RoHS compliant
- Antikink device material
- Steel | Galvanized
- Material of pneumatic tubing
- PA12-P
