Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

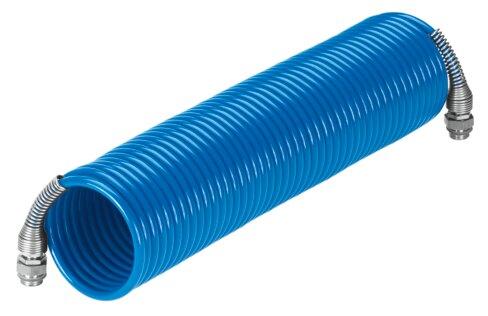

Reference imageConfirm configuration by manufacturer part number.
Festo
19799
Spiral plastic tubing PPS-4-15-1/4-BL
Engineered by Festo, part number 19799 is an industrial component featuring a working length of 15 m, an outside diameter of 6.3 mm, an inside diameter of 4.7 mm, and a block length of 0.67 m with 90 windings of 75 mm diameter. The blue assembly operates within a temperature-dependent pressure range of -0.95 bar to 21.2 bar and an ambient temperature range of -30 °C to 80 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. It incorporates brass external thread G1/4 pneumatic connections 1 and 2, galvanized steel antikink devices, a nominal tightening torque of 11 Nm with a ±20% tolerance, a product weight of 367 g, RoHS-compliant materials, low corrosion stress CRC 1, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 19799
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 19799.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 15 m
- Outside diameter
- 6.3 mm
- Block length
- 0.67 m
- Inside diameter
- 4.7 mm
- Winding diameter
- 75 mm
- Number of windings
- 90
- Temperature-dependent operating pressure
- -0.95 bar...21.2 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -30 °C...80 °C
- Nominal tightening torque
- 11 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 367 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- External thread G1/4
- Color
- Blue
- Material of connecting thread
- Brass
- Note on materials
- RoHS compliant
- Antikink device material
- Steel | Galvanized
- Material of pneumatic tubing
- PA12-P
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 19799. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
