Festo
1982886

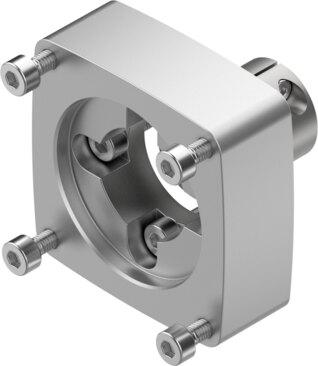

Axial kit EAMM-A-P3-28D-40P
The Festo industrial component, part number 1982886, features a nominal length of 14.5 mm, a product weight of 60 g, and a mass moment of inertia of 0.28 kgmm². Engineered with actuator interface code P3-28D, motor-in interface code 40P, and coupling housing interface code 28D, this RoHS compliant unit delivers a transferable torque of 0.2 Nm at a maximum rotational speed of 10,000 rpm. It operates within an ambient temperature range of -10 °C to 60 °C, supports storage temperatures from -25 °C to 60 °C, accommodates 0 to 95% relative air humidity, achieves an IP40 degree of protection, conforms to VDMA24364-B2-L LABS (PWIS) standards, and supports any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1982886
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1982886.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 14.5 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 0.2 Nm
- Product weight
- 60 g
- Interface code, actuator
- P3-28D
- Interface code, motor in
- 40P
- Interface code, coupling housing
- 28D
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1982886. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
