Festo
1983071

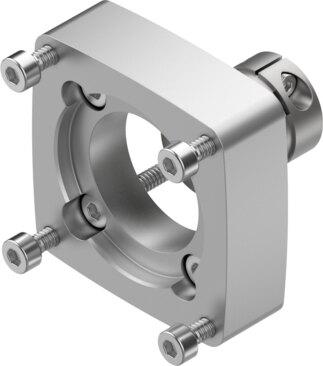

Axial kit EAMM-A-P4-28B-40P
The Festo industrial component, part number 1983071, features a nominal length of 12.5 mm, a transferable torque of 0.7 Nm, and a maximum rotational speed of 10000 rpm with a mass moment of inertia of 0.28 kgmm². This unit weighs 50 g, operates with an IP40 degree of protection in ambient temperatures from -10 °C to 60 °C, and accommodates any mounting position while meeting VDMA24364-B2-L LABS conformity and RoHS material restrictions. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1983071
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1983071.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 12.5 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 0.7 Nm
- Product weight
- 50 g
- Interface code, actuator
- P4-28B
- Interface code, motor in
- 40P
- Interface code, coupling housing
- 28B
- Note on materials
- RoHS compliant
