Festo
2029

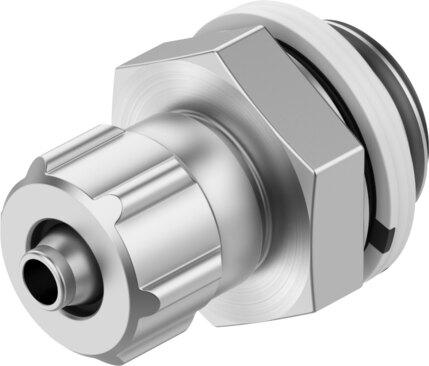

Quick connector CK-1/4-PK-4
The Festo part number 2029 is a straight industrial component featuring a 2.9 mm nominal width, an external thread G1/4 pneumatic connection 1, and a connection 2 for 6 mm outside diameter pneumatic tubing or 4 mm inside diameter barbed fitting with a nut. Constructed with an anodized wrought aluminum alloy screwed plug and union nut with PA-reinforced and TPE-U sealing rings, this component operates across a temperature range of -10 °C to 60 °C and handles pressures from -0.095 MPa to 1 MPa using compressed air or liquid, ice-free water. This pack size of 10 requires a nominal tightening torque of 11 Nm with a ±10% tolerance, achieves a corrosion resistance class of 2, and complies with VDMA24364-B1/B2-L LABS conformity and RoHS material standards. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2029
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2029.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.9 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 11 Nm
- Tolerance for nominal tightening torque
- ±10%
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm | for barbed tting, inside diameter 4 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Material of screwed plug
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Sealing ring material
- PA-reinforced | TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2029. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
