Festo
2031

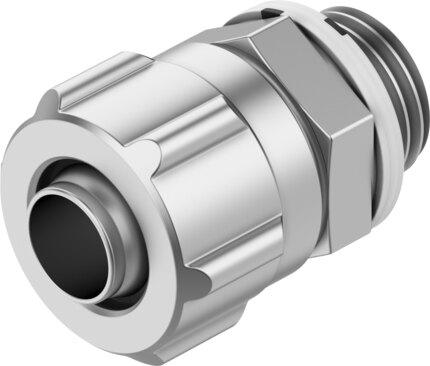

Quick connector CK-1/4-PK-9
The Festo part number 2031 is an 8 mm nominal width straight industrial component featuring a G1/4 external thread pneumatic connection 1 and a pneumatic connection 2 for a 9 mm inside diameter barbed fitting with nut. Constructed with an anodized wrought aluminum alloy screwed plug and union nut alongside PA-reinforced and TPE-U(PU) sealing rings, this component operates across a pressure range of -0.95 bar to 10 bar for compressed air and up to 0.6 MPa at a maximum of 50 °C for water. Supplied in a pack size of 10 with a nominal tightening torque of 11 Nm at a ±10% tolerance, it achieves a corrosion resistance class of 2 and conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2031
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2031.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 11 Nm
- Tolerance for nominal tightening torque
- ±10%
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for barbed tting, inside diameter 9 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Material of screwed plug
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Sealing ring material
- PA-reinforced | TPE-U(PU)
