2037881

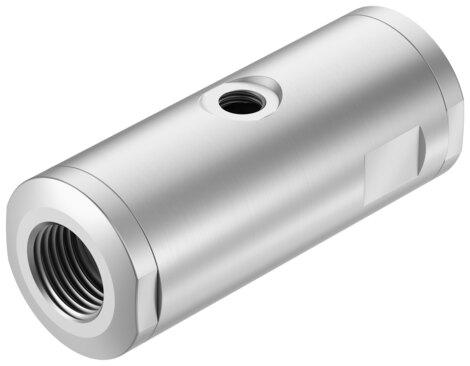

Name: Festo 2037881 Pinch valve VZQA-C-M22U-...
Brand: Festo

Pinch valve VZQA-C-M22U-...

The Festo 2037881 is a pneumatically operated, 2/2-way monostable open pinch valve utilizing a soft sealing principle and rebound resilience reset method. Featuring an externally controlled, reversible flow design with a nominal pressure fitting PN of 10, it supports in-line installation in any mounting position across nominal widths DN of 6, 15, and 25. Operating pressures range from 1 bar to 6.5 bar with a medium pressure capability up to 4 bar, and connection options include ASME-BPE, DIN 32676, G thread, and NPT fitting connections. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2037881
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2037881.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Pinch valve, pneumatically operated
Actuation type: Pneumatic
Sealing principle: Soft
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Clamp according to ASME-BPE Type A | Clamp according to ASME BPE type B | Clamp according to DIN 32676 series A | G1/4 | G1/2 | G1 | 1/4 NPT | 1/2 NPT | 1 NPT
Nominal width DN: 6 | 15 | 25
Valve function: 2/2-way, monostable, open
Flow direction: Reversible
Medium pressure: 0 MPa...0.4 MPa | 0 bar...4 bar | 0 psi...58 psi
Note on the medium pressure: Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
Operating pressure: 0.1 MPa...0.65 MPa | 1 bar...6.5 bar | 14.5 psi...94.25 psi
Nominal pressure of tting PN: 10
Burst pressure: 1.6 MPa | 16 bar | 232 psi
Overload pressure: 0.78 MPa | 7.8 bar | 113.1 psi
Reset method: Rebound resilience
Type of control: Externally controlled

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2037881. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
